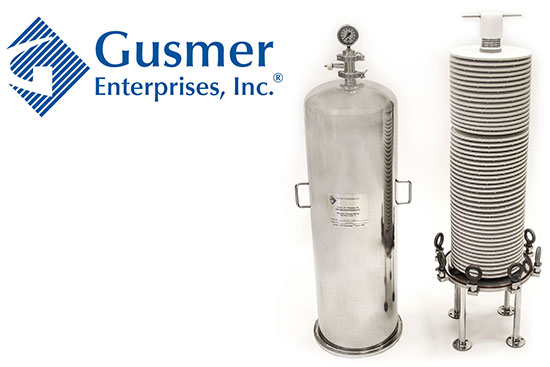

CELLU-STACK® DEPTH FILTER HOUSING
Gusmer Enterprises offers a complete line of Cellu-Stack® filter housings designed as a cost-effective system for high capacity liquid filtration applications. The versatile sanitary housing line accommodates either 12″ or 16″ diameter Cellu-Stack® filter cartridges with the effective filtration surface area ranging from 17.7 ft2 – 160.0 ft2. All housings are available in 1, 2, 3, or 4-cartridge versions, which can be modified with the use of Cellu-Stack® adapters to accept fewer cartridges for partial batch runs or other applications requiring fewer cartridges. ASME code housings are also available if required. Product Details
Videos
Educational Webinars
Gallery
Downloads
Product Details
Application Notes
- Place a quick acting check valve at the housing outlet to avoid integrity breaches that can be caused by backpressure
- Double check that all cartridge gaskets are in place and in good condition to ensure optimal sealing
- If filter life is not fully exhausted by a single filtration, DO NOT remove used filters from the housing for storage between uses. Instead, used filters can be stored IN the housing by following these steps:
- Shut Down: After completion of the filtration cycle, sanitize the filters with the same method used to prepare the filters (i.e. steam or hot water flush)
- Storage: Drain the housing, apply 2 psi gas pressure (i.e. CO2, nitrogen) while the housing is still warm (to avoid a vacuum upon cooling) and close all ports
- Restart: When restarting for another filtration cycle, repeat the sanitization procedure just as you would for normal filter preparation
Additional housing options available:
- Select Line of Filter Housings
